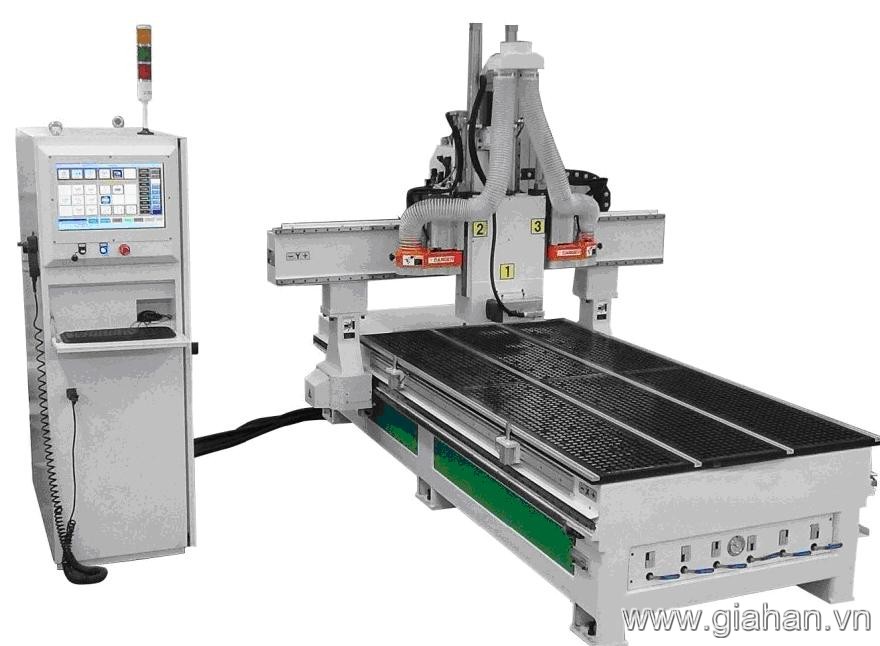

CNC Machine
|
|
Model
|
A1-483
|
|
Table size
|
1280mm X 2440mm
|
|
Table design
|
PVC Vacuum (6) and T-slot(4)
|
|
Linear rail Guide
|
Linear guide 25mm / Taiwan
|
|
X-Y movement
|
Rack and pinion/ Taiwan
|
|
X-Y drive reducer
|
Planetary type gear reducer /SHIMPO/Japan
|
|
Z movement
|
Ball screw drive/25mm/Taiwan
|
|
Z speed reduce
|
Z axis direct drive by motor
|
|
Max. speed
|
35,000mm/min
|
|
Max. cutting speed
|
25,000mm/min
|
|
Spindle X 3 pcs
|
6KW /Air cooling/HSD / Italy
Middle spindle can rotate 0°and 180°
|
|
Spindle speed
|
18,000rpm
|
|
Inverter power
|
7.5kw/Delta/Taiwan
|
|
Drive motors
|
Servo motor / Yaskawa
|
|
Working voltage
|
380V/ 50Hz-60Hz / 3-phase
|
|
Software
|
Router 8 / France
|
|
Pneumatic rod
|
3 Nos. Adjustable ( X: 2 Y:1 )
|
|
Collet
|
ER32-16mm,12.7mm,6mm
|
|
Controls
|
Taiwan Syntec Controller
|
|
Vacuum pump
|
Chinese Becker Pump 5.5KW
|
|
Linear guide rail
|
With dust proof and self-lubricating
|
|
Vacuum pods
|
145*145*100mm ( six pcs )
|
