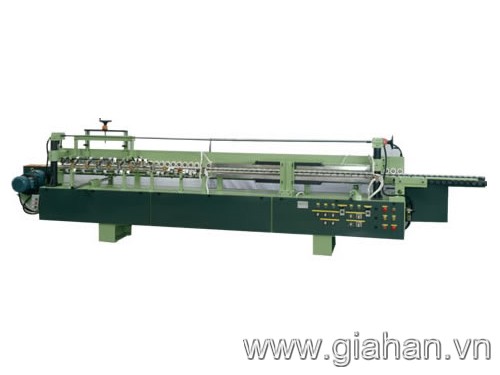

Máy Ép Cong Chi Tiết Profile (Laminate)
Product code:
Loại:
Máy Móc, Thiết Bị Phụ Trợ
Product Information
| Model |
EBP-32NC |
| Workpiece overhang |
100mm |
| Workpiece thickness |
16-185mm |
| Min workpiece width |
210mm |
| Workpiece length |
700-3200mm |
| Max Build up-height |
100mm |
| Max Build up-width |
- |
| Max laminate overhang |
|
| Max laminate thickness |
1mm |
| Feeding speed |
0.2-2.6m/ min |
| Bending radius |
6-25mm |
| Total electrical connection |
12Hp |
| Tatal extraction outlet |
- |
| Air Flow velocity |
- |
| Air consumption |
150L/ min |
| Overall length |
4700mm |
| Net weight (approx) |
1800kgs |
