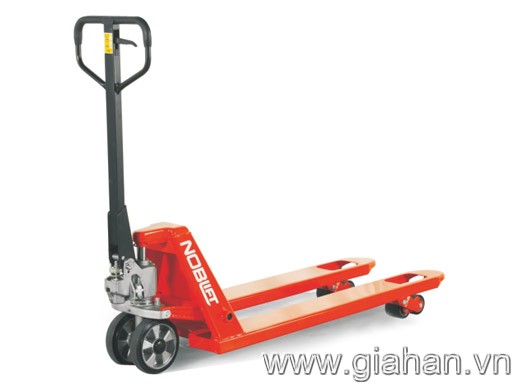

Xe Nâng Tay

Product code:

Loại: Máy Móc, Thiết Bị Phụ Trợ

Product Information

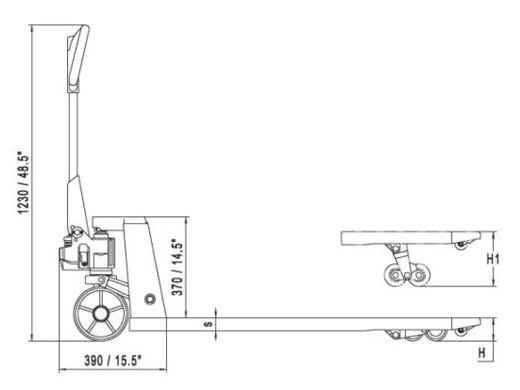

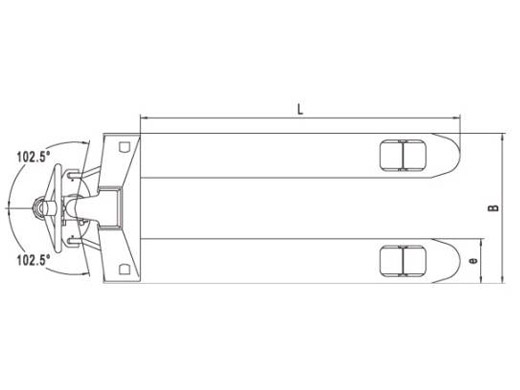

Item/Type		AC20		AC25		AC30
Capacity Q	kg	2000		2500		3000
Min.fork height h	mm	85	75	85	75	85	75
Max.fork height h1	mm	200	190	200	190	200	190
Steering wheel	mm	Φ200×50	Φ180×50	Φ200×50	Φ180×50	Φ200×50	Φ180×50
Load roller Single	mm	Φ80×93	Φ74×93	Φ80×93	Φ74×93	Φ80×93	Φ74×93
Load roller Tandem	mm	Φ80×70	Φ74×70	Φ80×70	Φ74×70	Φ80×70	Φ74×70
Size of fork e*s	mm	160×50				160×60
Width overall forks B	mm	450/520/540/685
Fork length I	mm	800/900/1000/1100/1150/1220
